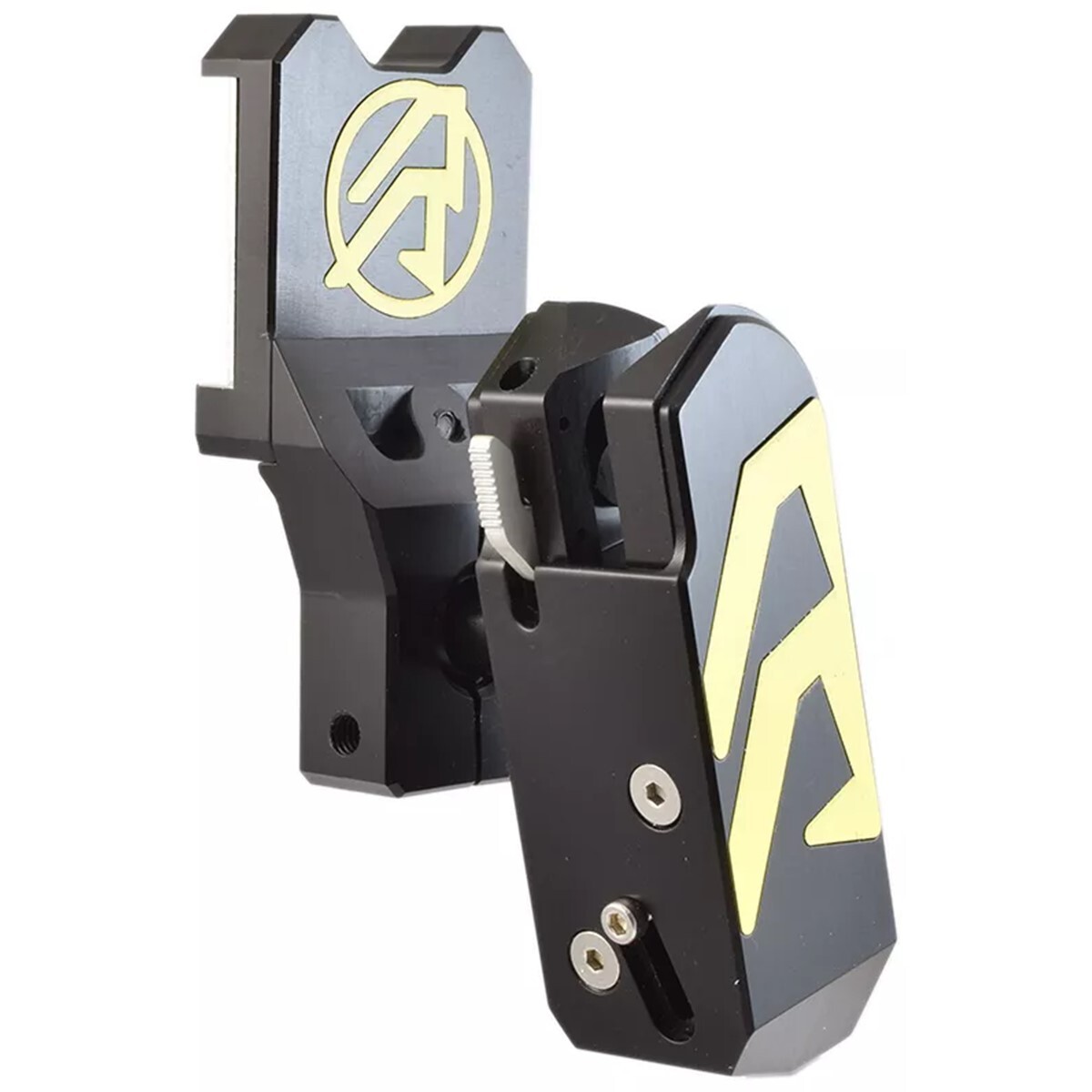

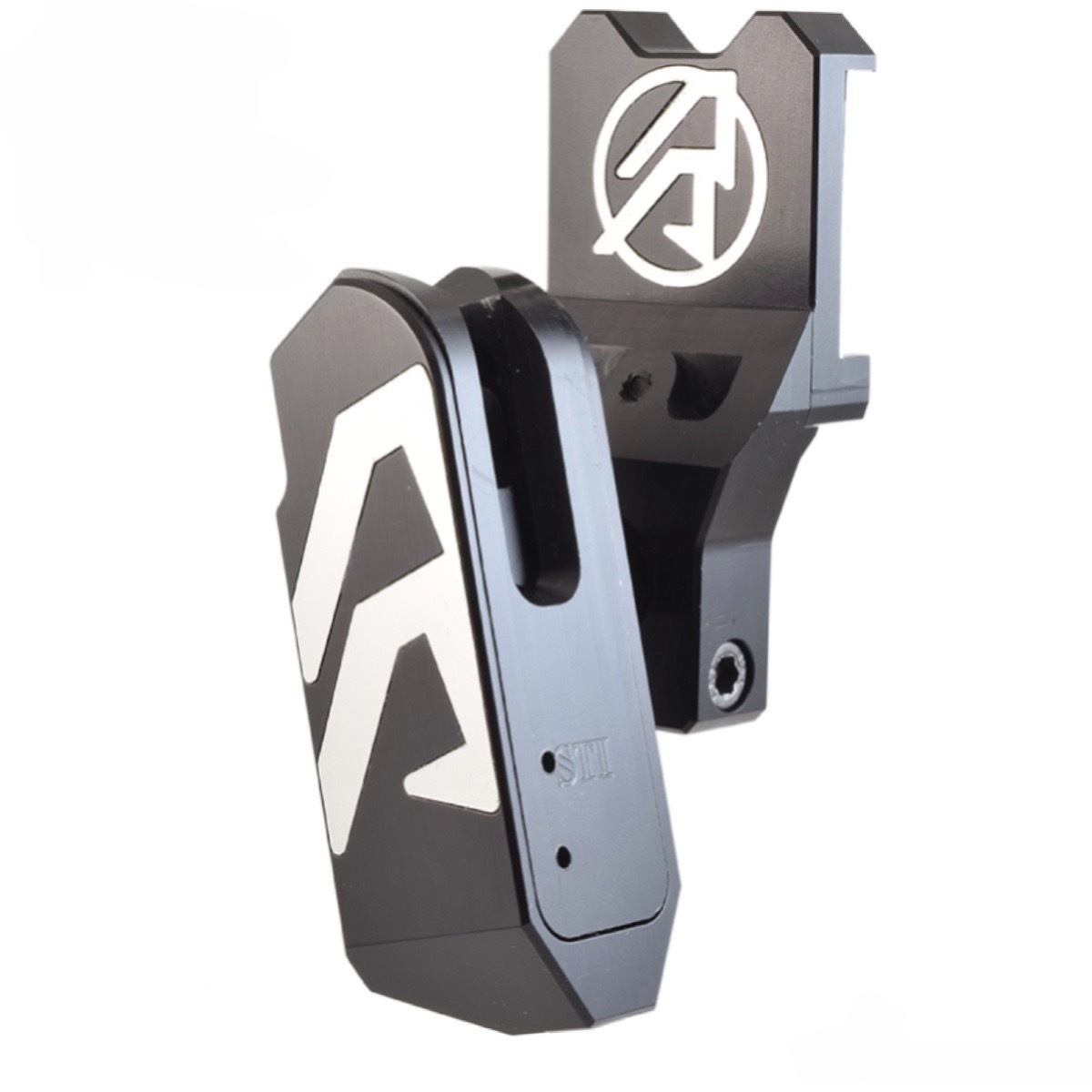

Introducing the new Double-Alpha Academy's race holster.
The DAA Alpha-X Holster is the next step in the evolution of the DAA Race Master Holster.
The DAA Alpha-X Holster even uses the same magnetic actuated inserts as the DAA Race Master, so this allows an economical upgrade for those competitors who have already invested in the DAA Race Master system, by purchasing just the DAA Alpha-X Blank Housing.
The DAA Alpha-X brings several meaningful performance improvements:
- New Ball Joint and Lock-Up Mechanism
- The ball joint of the DAA Alpha-X has been redesigned with a much larger ball joint and a pressure lug lock-up. This allows fine adjustment of the holster angle without damaging the surface of the ball joint, thus making even the smallest adjustments possible.
- The ball joint has also been located higher up, bringing it closer to the centre of the holster which reduces the torque and stress forces applied and gives the holster more rigidity.
- A large easy-to-reach one-screw locking system has also been incorporated which allows the adjustment to the holster position even when wearing it.
Body Rail Height Adjustment
The DAA Alpha-X height adjustment is by means of a rail incorporated directly into the side of the holster body itself. This gives the holster an extended range of adjustment and again reduces torque and forces applied. The locking system has been redesigned to lock the holster at the desired height without causing any damage to any of the holster components. This is achieved by the use of an expanding dovetail mechanism that does not damage the rail.
Detachable Belt Hanger

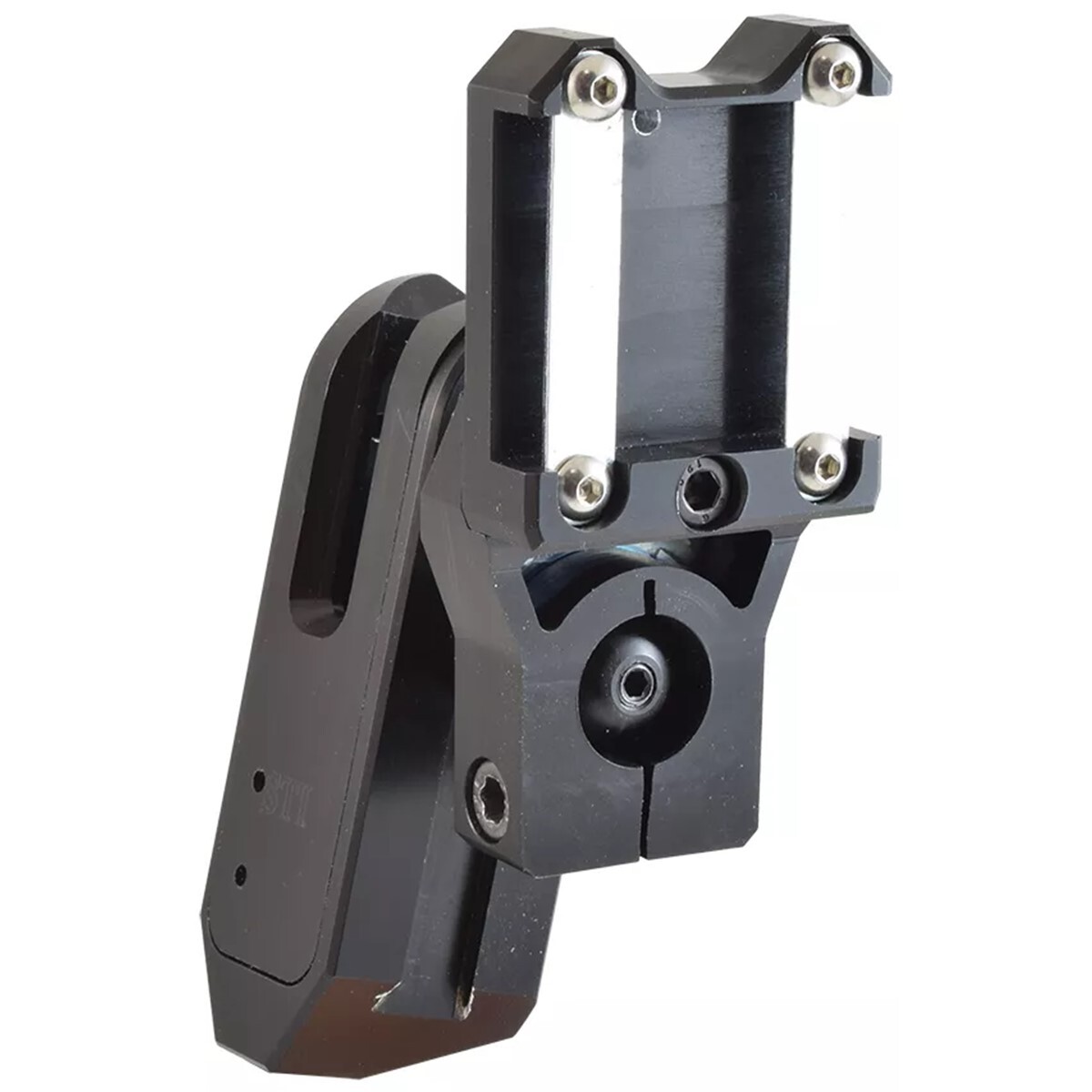

The DAA Alpha-X comes standard with a two-piece belt hanger which can be dismantled by opening a single screw, allowing the holster to be removed from the belt whilst retaining all the position settings. This is a great space-saving feature which we sure will be appreciated by all users.
Interchangeable Color Logo Inserts
Whilst the DAA Alpha-X is only available in black anodise, DAA has made the coloured inserts for the hanger and body logos available to be purchased separately, so if you want to change the colour component of your holster it's as easy as replacing the laser cut inserts!
Gun Compatibility
While the Alpha-X Holster is gun-specific, it is designed to enable you to switch from one gun to another without having to buy a complete new holster. All you have to do is change the relatively inexpensive locking-block assembly, available separately.
Magnetic Insert
Double Alpha have a Magnetic Insert Block Assembly which works by two powerful magnets in opposition to give what feels like a spring-loaded system.
This system provides two distinct positions for the slide lock, all the way down, and all the way up.
The system also provides feedback to the competitor by way of an audible "click" so the users know the holster is in the correct position for locking the gun in place or re-holstering it.
1911 NOTES:
The insert 1911 Steel Frame - NARROW is designed for 1911's with narrow trigger guards such as the STI Trojan, STI Lawman, etc. They can also provide a tighter fit for the standard 1911 but may require some minor fitting.
DAA recommends fitting the optional muzzle support for all 1911 firearms as they tend to be a bit loose.
View insert Block pistol compatibility: click here.
The Alpha-X / Race Master Holster - Magnetic Insert Block Assembly fits both the DAA Race Master and the newer DAA Alpha-X Holster bodies.
The Magnetic Insert Block Assembly works by two powerful magnets in opposition to give what feels like a spring-loaded system.
This system provides two distinct positions for the slide lock, all the way down, and all the way up.
The system also provides feedback to the competitor by way of an audible "click" so the users know the holster is in the correct position for locking the gun in place or re-holstering it.
1911 NOTES:
The insert 1911 Steel Frame - NARROW is designed for 1911's with narrow trigger guards such as the STI Trojan, STI Lawman etc. They can also provide a tighter fit for the standard 1911 but may require some minor fitting.
DAA recommends fitting the optional muzzle support for all 1911 firearms as they tend to be a bit loose.
View insert Block pistol compatibility: click here.
Alpha-X / Race Master Holster utilizes an efficient and easy system to allow shooters to switch their holster from one gun type to another by means of changing the Insert Block Assembly. This switch is fast and easy and can be done in less than a minute, and without losing any of the holster's adjustments or settings.
The Insert Block Assembly includes:
- The Locking Block (gun specific).
- The Sliding Lock, assembled (gun specific).
- The safety lever, assembled.
- The internal magnetic activation system, assembled.
The Insert block grips the pistol only on the front end of the trigger guard, and a very precise fit is required in that area. In some cases some light modifications to the Insert Block may be required.
Should you need to dismantle your insert block for some fitting, follow these steps:
- Remove the insert block from the holster by removing the two small M4 screws from the back of the holster.
- Using a punch and hammer, push the two steel pins from the front of the block towards the back (push from the side with the gun type engraved). These pins may be tight.
- Once the pins are out, the plastic wedge holding the 2nd magnet will come out. Make sure the magnet does not fall out the part. It is usually held snugly it its pocket.
- Use a marker to make a dot on the top of the magnet which is embedded in the slide lock. This will make it easy for you to ensure that you reassemble it with the correct side up. Most likely it will fall out or you will want to remove it while fitting the slide lock.
- To remove the slide lock from the block, unscrew the M3 screw visible from the back of the block – and then slide the slide lock upwards and out through the window in the block – passed the safety lever, which must be in the unlocked position.
To reassemble- reverse your steps.
The Alpha-X / Race Master Holster Insert Blocks are design to be used in either RH or LH holsters. The same insert works for both.
CRITICAL SAFETY WARNING
Read the following instructions carefully before using this holster or Insert Block:
- Never holster a loaded firearm without first engaging its safety.
- Check periodically to ensure your safety is functioning correctly.
- Never disengage the safety of the firearm until well clear of the holster and the muzzle is pointing down range.
- Make sure you are fully familiar with the correct use, and adjustment of your DAA Holster before attempting to use it with a loaded firearm.
- Make sure that you have the correct holster/Insert model for your type of firearm.
- Do not use a holster that is unsuited to your firearm, as that could result in unreliable retention or release which could lead to a fatal accident.
- Never use a trigger shoe or a widened trigger with this holster.
- Double check that the retention and release work well, particularly if any modifications have been made to your firearm.
- Care must be taken to ensure the gun is placed properly when returned to the holster. It if it is not positioned correctly, it will not be held securely and may fall out.
- Never holster the gun quickly or with force, as that increases the chance of making contact with the trigger.
- Any adjustment or modification to the holster design may render it unsafe or cause malfunction.
- Take care that the firearm is not dislodged or knocked when holstered, particularly when the holster’s safety lever is unlocked. As this holster has no muzzle support, take care that the muzzle of the gun is not bumped upwards, as this may dislodge the gun from the holster
- Keep your fingers well clear of the trigger when holstering and drawing the firearm.
- The holster should be locked when running or jumping with a holstered gun, or you should keep your hand on the gun’s grip to prevent it accidentally falling.
- Handling a loaded firearm, and drawing it from a holster is inherently dangerous. You do so entirely at your own risk and responsibility.
- Liability is limited only to the replacement of this holster or parts thereof. No additional warranties are expressed or implied by the manufacturer or the distributors.
