PhotoEscape Dillon XL650 Replacement FailSafe Bracket Kit
Out of Stock
As a continuation of my pursuit of more accurate charge drops, I felt, that having FailSafe Brackets that fits two of my Dillon XL650 presses, and provides for consistent return of the powder bars, is a necessity.
The OEM bracket is easily bent when something goes wrong during bar return, i.e. worn white plastic insert (shoulder washer, per Dillon's manual) drops down, and then catches bracket by its top, instead of sliding all way in, or simply wing nut being over tightened.
Once OEM bracket is bent / unbent couple times, it starts flexing, which in turn creates inconsistencies on powder bar return. This in turn necessitates further tightening of wing nut, and ultimately a call to Dillon, requesting replacement.
I have clear understanding, that with Dillon's EXCELLENT warranty on XL650, the need for part proposed here for many of reloaders would be non-existent. I, by myself, always keep kit of spare parts, and failsafe bracket is in it. However every time I had to replace it in the middle of loading of the batch of few hundred rounds (that is when it happens most of the time, because I'm going at the "max" speed), I would lose quite a bit of time on unscrewing, unbending, resetting, re-measuring, etc. But most importantly, I would have a doubt in the back of my mind - "do I have undercharged cases"! That is right, - bent safety bracket means insufficient powder bar return, subsequent undercharge, and subsequent potential squib.

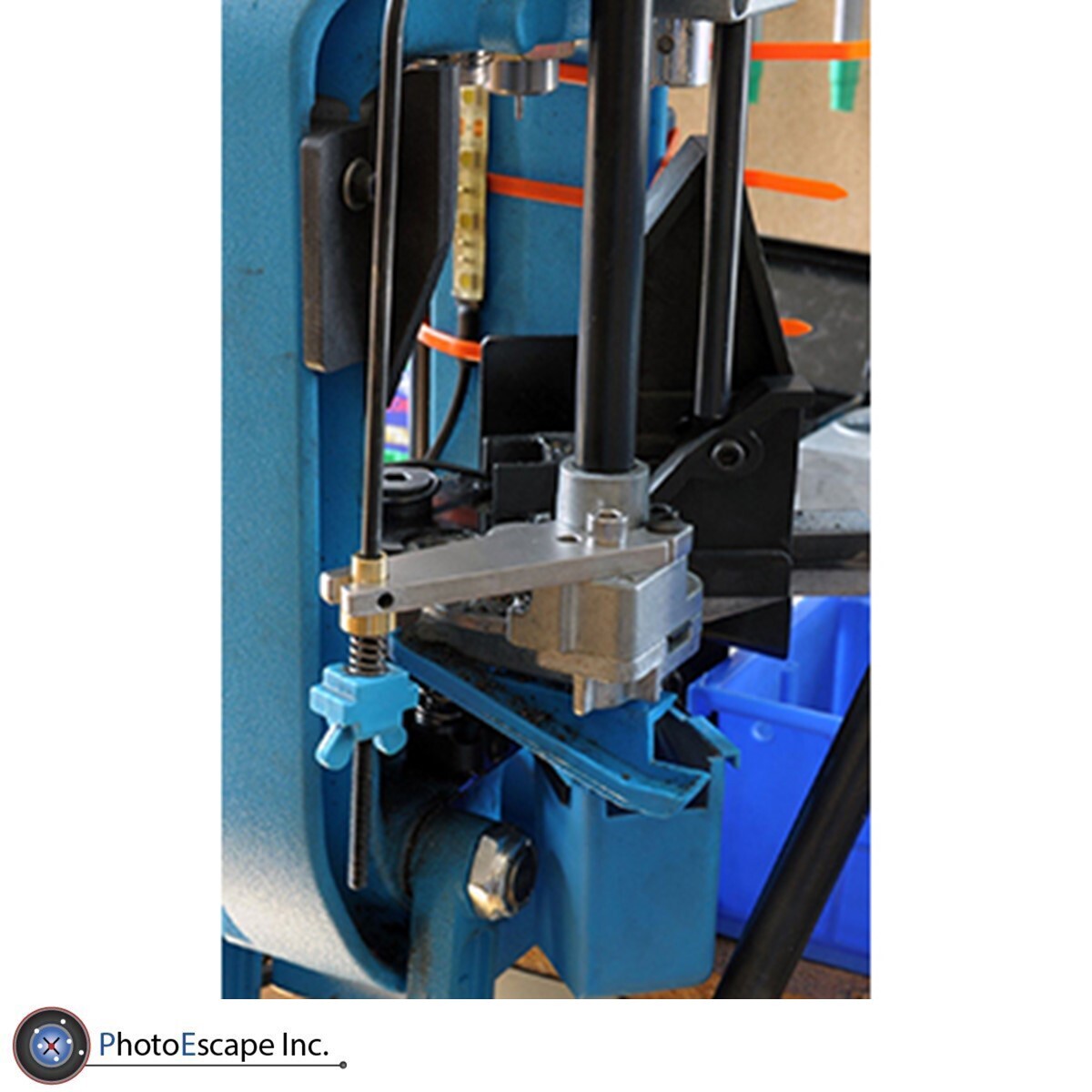

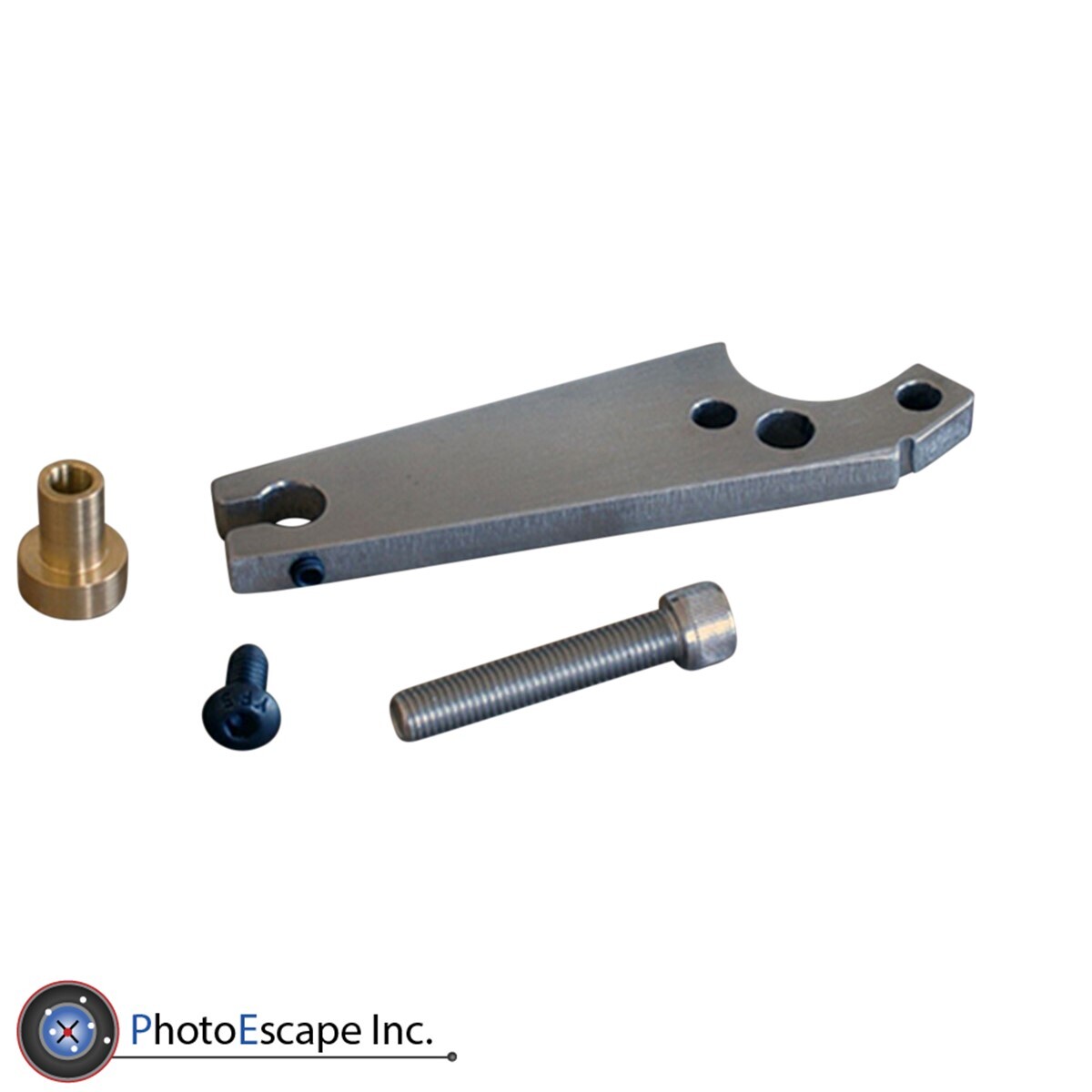

Obviously squib is an extreme case, however accuracy would be definitely affected. So I decided and manufactured a batch of about dozen brackets made of stainless steel, complemented it with shoulder washer made out of brass, installed and tested on both of my presses. I'm much happier now, - I can go full speed without worrying that bracket would bend, flex, or else. Set screw prevents from washer drops, and powder bar returns to the same spot every time. Resulting rounds produce more accurate imprints on targets, standard deviation is lower by 4-6 in comparison with previously loaded same charge rounds.
Kit Includes:
Alex Poltorak - Photo Escape Inc.
| SKU | 167783 |
| Brand | PhotoEscape Inc. |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.070m |
| Shipping Height | 0.030m |
| Shipping Length | 0.120m |
| Shipping Cubic | 0.000252000m3 |
| Unit Of Measure | ea |
As a continuation of my pursuit of more accurate charge drops, I felt, that having FailSafe Brackets that fits two of my Dillon XL650 presses, and provides for consistent return of the powder bars, is a necessity.
The OEM bracket is easily bent when something goes wrong during bar return, i.e. worn white plastic insert (shoulder washer, per Dillon's manual) drops down, and then catches bracket by its top, instead of sliding all way in, or simply wing nut being over tightened.
Once OEM bracket is bent / unbent couple times, it starts flexing, which in turn creates inconsistencies on powder bar return. This in turn necessitates further tightening of wing nut, and ultimately a call to Dillon, requesting replacement.
I have clear understanding, that with Dillon's EXCELLENT warranty on XL650, the need for part proposed here for many of reloaders would be non-existent. I, by myself, always keep kit of spare parts, and failsafe bracket is in it. However every time I had to replace it in the middle of loading of the batch of few hundred rounds (that is when it happens most of the time, because I'm going at the "max" speed), I would lose quite a bit of time on unscrewing, unbending, resetting, re-measuring, etc. But most importantly, I would have a doubt in the back of my mind - "do I have undercharged cases"! That is right, - bent safety bracket means insufficient powder bar return, subsequent undercharge, and subsequent potential squib.
Obviously squib is an extreme case, however accuracy would be definitely affected. So I decided and manufactured a batch of about dozen brackets made of stainless steel, complemented it with shoulder washer made out of brass, installed and tested on both of my presses. I'm much happier now, - I can go full speed without worrying that bracket would bend, flex, or else. Set screw prevents from washer drops, and powder bar returns to the same spot every time. Resulting rounds produce more accurate imprints on targets, standard deviation is lower by 4-6 in comparison with previously loaded same charge rounds.
Kit Includes:
Alex Poltorak - Photo Escape Inc.
| SKU | 167783 |
| Brand | PhotoEscape Inc. |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.070m |
| Shipping Height | 0.030m |
| Shipping Length | 0.120m |
| Shipping Cubic | 0.000252000m3 |
| Unit Of Measure | ea |
