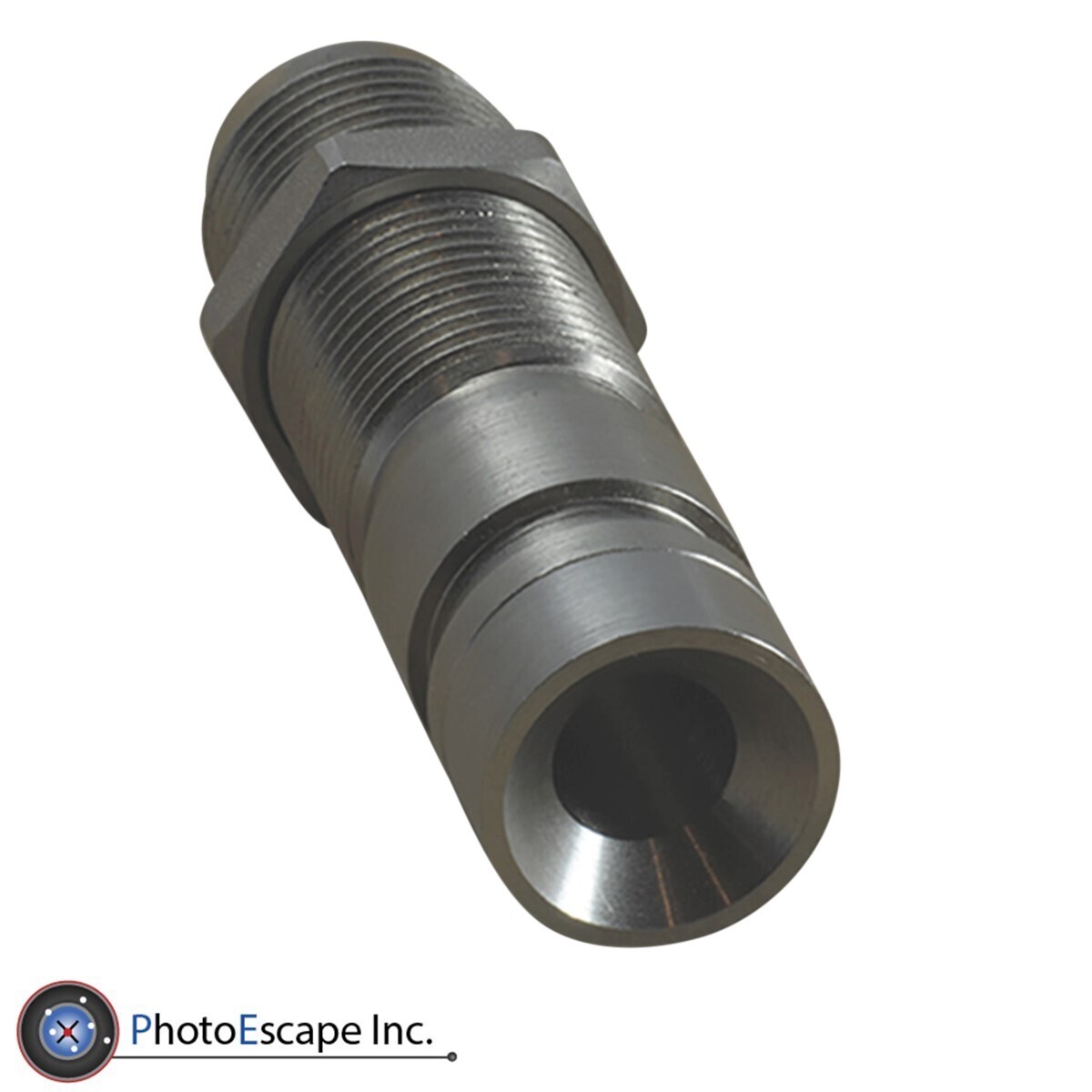

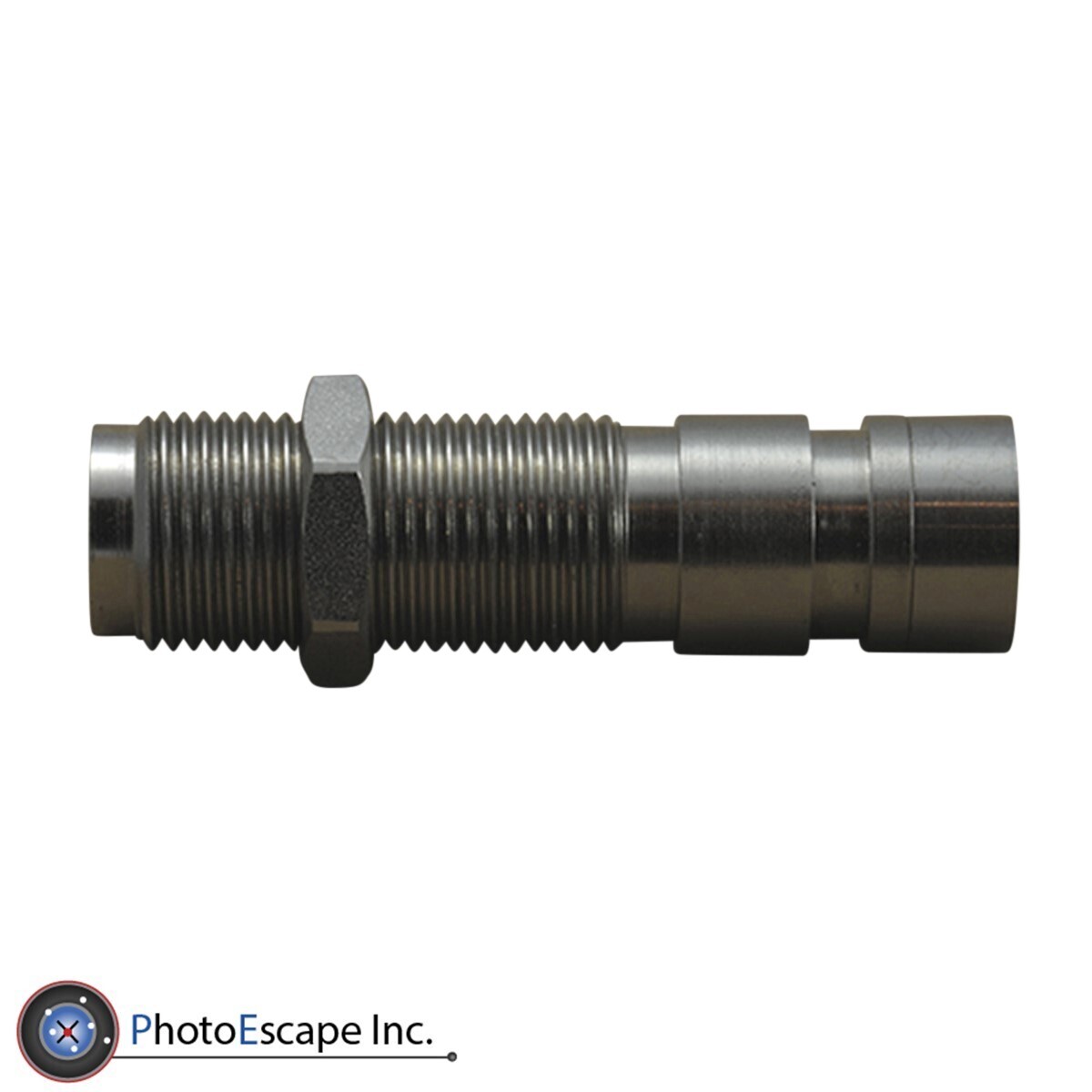

PhotoEscape Dillon Single Stage Powder Die Kit
Out of Stock
I’ve been asked by multiple reloaders for the solution that enables using of my Powder Funnels on other than Dillon platforms.
This kit allows for adopting my Powder Funnels, as well Dillon OEM, Double Alpha Academy or any third party funnels designed for Dillon presses on any single, turret or progressive press with standard 7/8-14 die thread size.

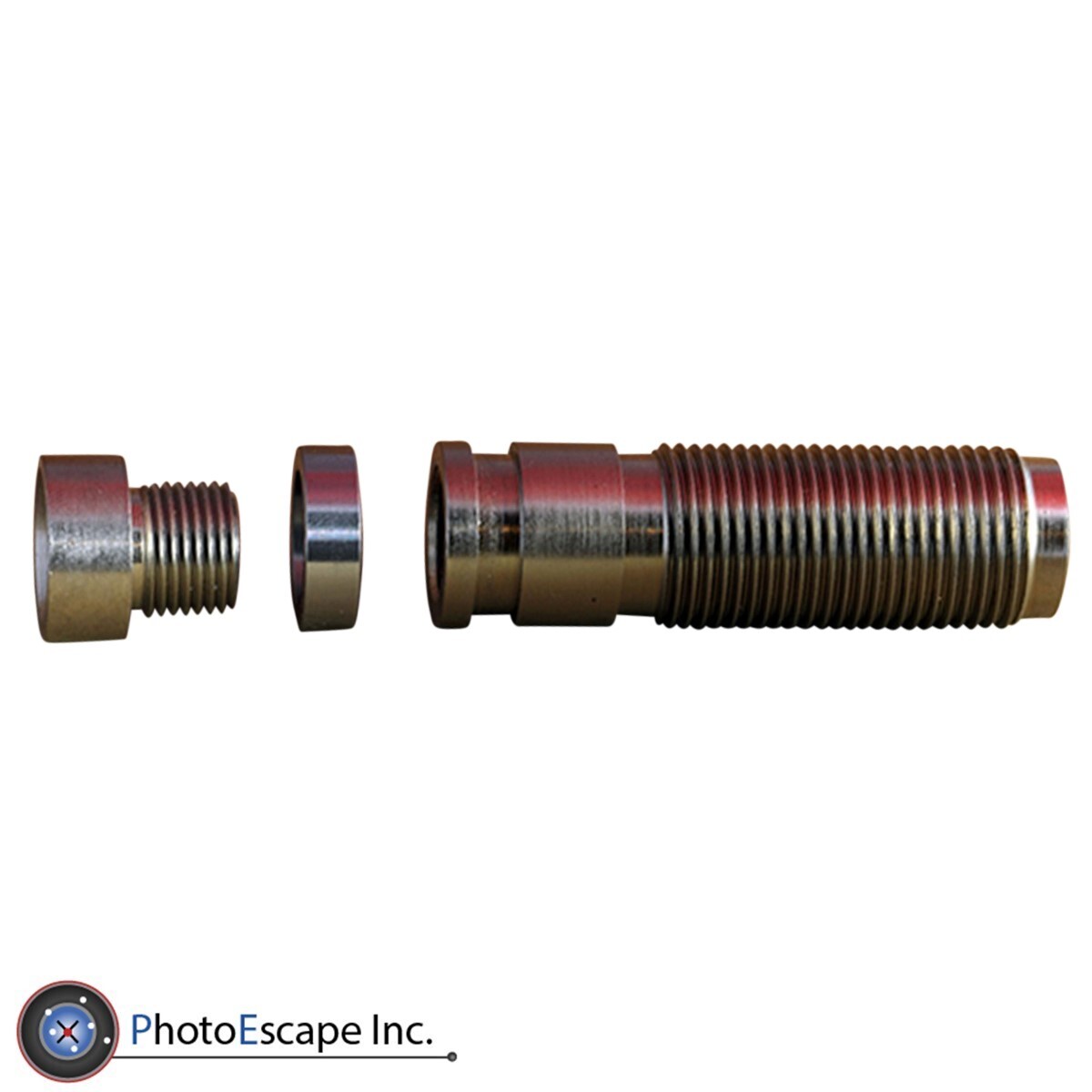

Threaded cup on top of the powder die provides for hard stop of the funnel and manual powder charge. Funnel itself is a free-floating inside of the die, and thus provides for proper centering of the case.
Dillon’s Powder measure can be mounted at the top of the die, providing with measured powder charges. Powder measure can be manually cycled (recommended approach) or cycled automatically with installation of double springs, - Dillon’s part number 14036. I do not recommend this method as powder measure self-cycling can lead to double charges, if powder drop process isn’t carefully controlled!
I attempted to address multitude of case sizes with single size of this Powder Through Die kit. I verified that if will work with pistol cases from 32 ACP to 44 Magnum (with using included ¼” spacer), and most rifle cases when using my 26 (6.5mm) & 30CAL PTUs. I know that long rifle cases, i.e. 300 WinMag, 30-06, and as well pistol cases that are longer than 44 Magnum, i.e. 500 S&W, will not work with Threaded Cup installed due to the limitations of platform vertical movement on most presses. However there is good chance that it would work with Dillon’s powder measure, as it allows for funnel vertical movement well above upper edge of the powder die.

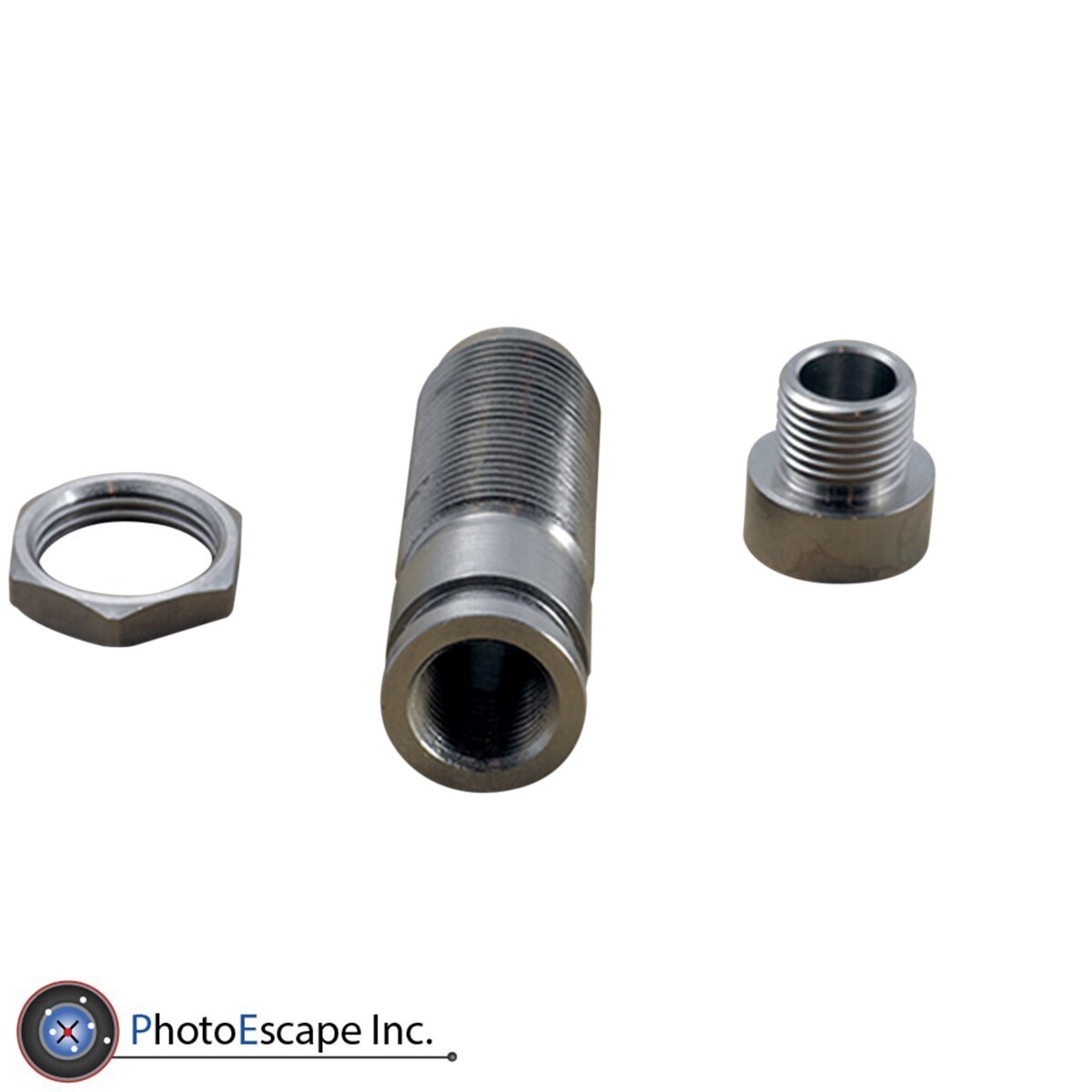

Kit includes:
Alex Poltorak - Photo Escape Inc.
| SKU | 167785 |
| Brand | PhotoEscape Inc. |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.090m |
| Shipping Height | 0.040m |
| Shipping Length | 0.110m |
| Shipping Cubic | 0.000396000m3 |
| Unit Of Measure | ea |
I’ve been asked by multiple reloaders for the solution that enables using of my Powder Funnels on other than Dillon platforms.
This kit allows for adopting my Powder Funnels, as well Dillon OEM, Double Alpha Academy or any third party funnels designed for Dillon presses on any single, turret or progressive press with standard 7/8-14 die thread size.
Threaded cup on top of the powder die provides for hard stop of the funnel and manual powder charge. Funnel itself is a free-floating inside of the die, and thus provides for proper centering of the case.
Dillon’s Powder measure can be mounted at the top of the die, providing with measured powder charges. Powder measure can be manually cycled (recommended approach) or cycled automatically with installation of double springs, - Dillon’s part number 14036. I do not recommend this method as powder measure self-cycling can lead to double charges, if powder drop process isn’t carefully controlled!
I attempted to address multitude of case sizes with single size of this Powder Through Die kit. I verified that if will work with pistol cases from 32 ACP to 44 Magnum (with using included ¼” spacer), and most rifle cases when using my 26 (6.5mm) & 30CAL PTUs. I know that long rifle cases, i.e. 300 WinMag, 30-06, and as well pistol cases that are longer than 44 Magnum, i.e. 500 S&W, will not work with Threaded Cup installed due to the limitations of platform vertical movement on most presses. However there is good chance that it would work with Dillon’s powder measure, as it allows for funnel vertical movement well above upper edge of the powder die.
Kit includes:
Alex Poltorak - Photo Escape Inc.
| SKU | 167785 |
| Brand | PhotoEscape Inc. |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.090m |
| Shipping Height | 0.040m |
| Shipping Length | 0.110m |
| Shipping Cubic | 0.000396000m3 |
| Unit Of Measure | ea |
