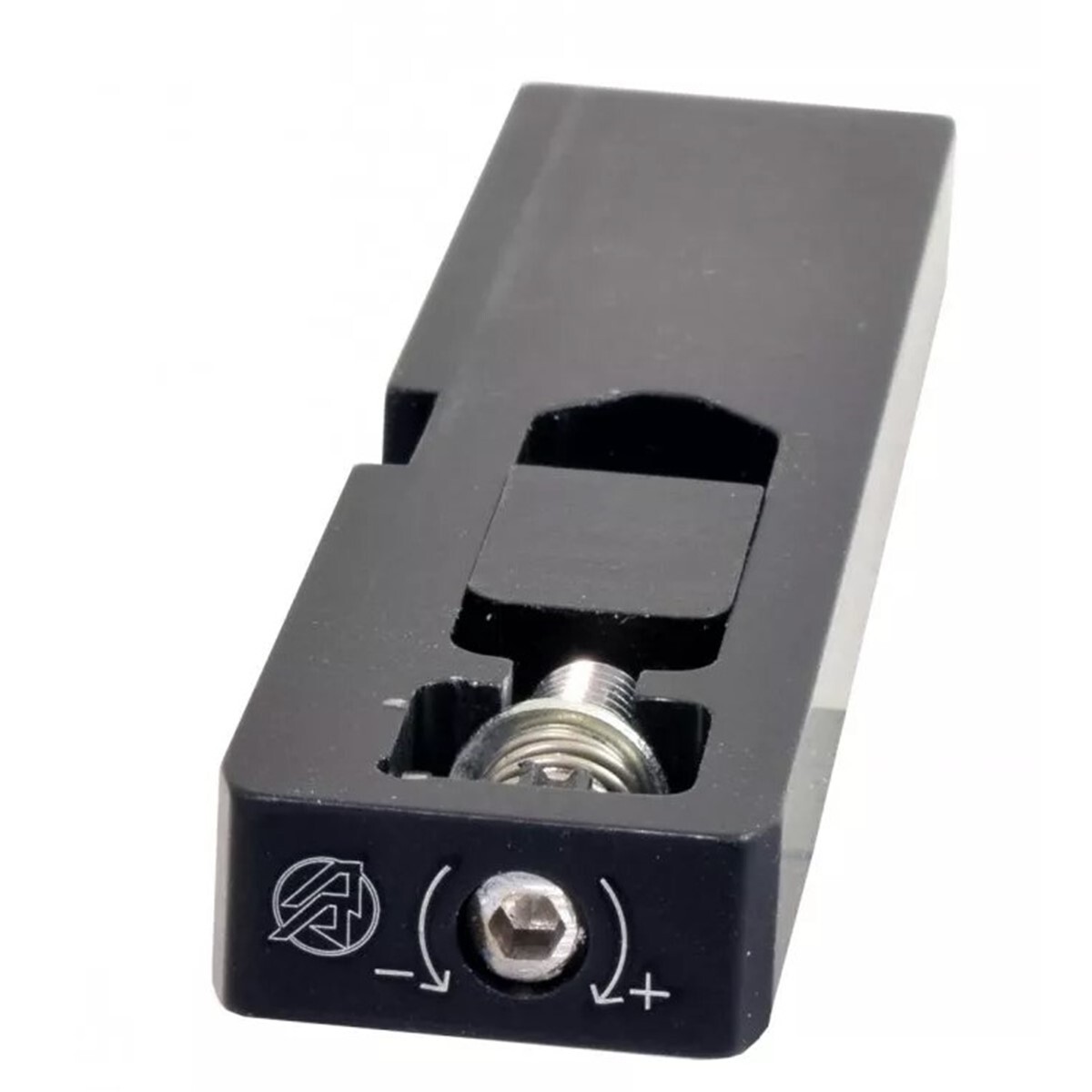

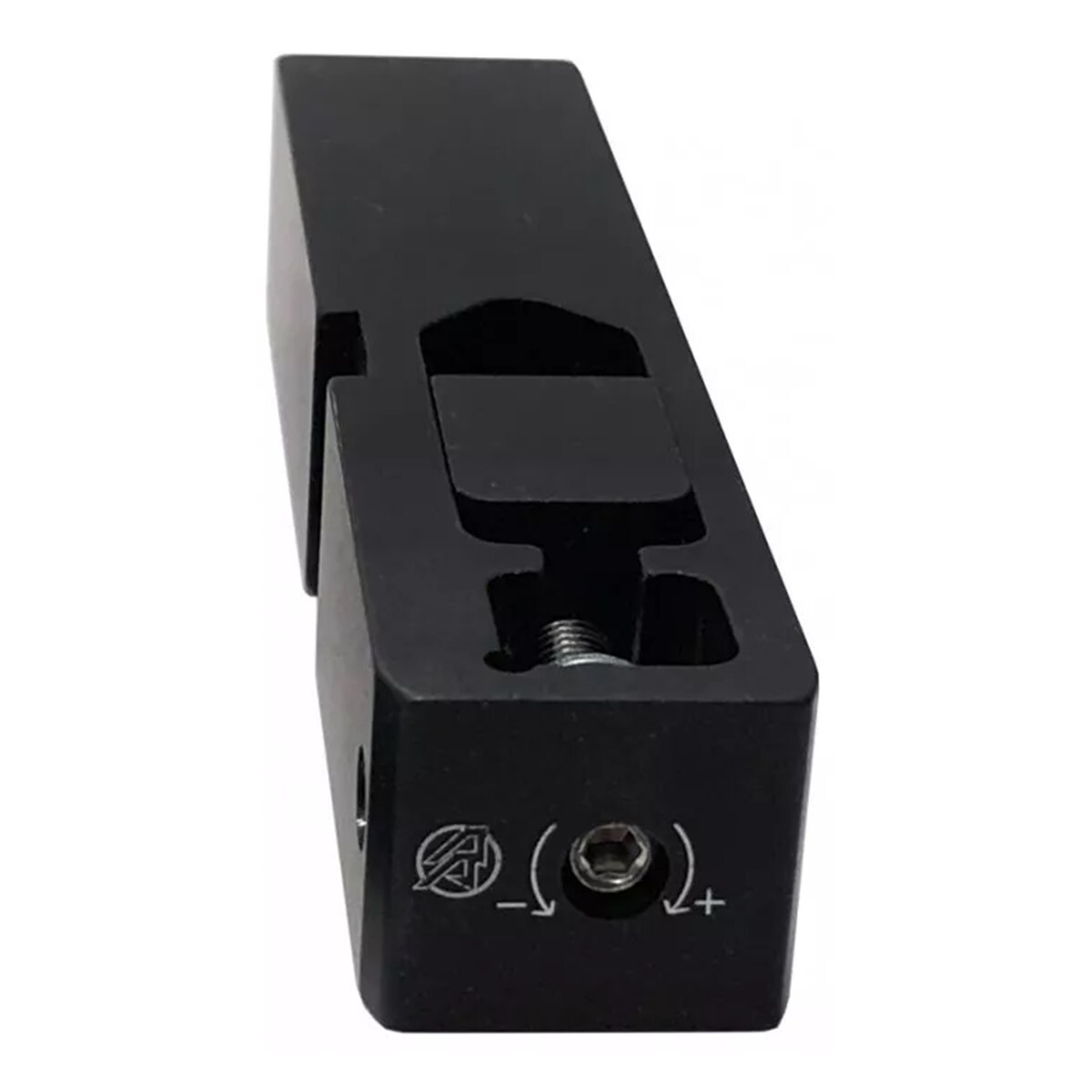

DAA Extra-Short Dillon Powder Bar
In Stock
The DAA Extra-Short Dillon Powder Bar was developed to meet a specific need, created with the introduction of the Dillon XL750 press: In the 750, the Dillon Powder Measure is angled such that the powder bar must extend directly over station #4 in the tool head, and it cannot be repositioned. This Is not an issue if you have a short die in that station. However, if you wish to run a powder check-in station #3, and a bullet dropper in station #4, as many do, this creates a serious problem. The original Dillon Powder Bar is too long, and it will extend and impact the bullet dropper in station #4, preventing the correct function.

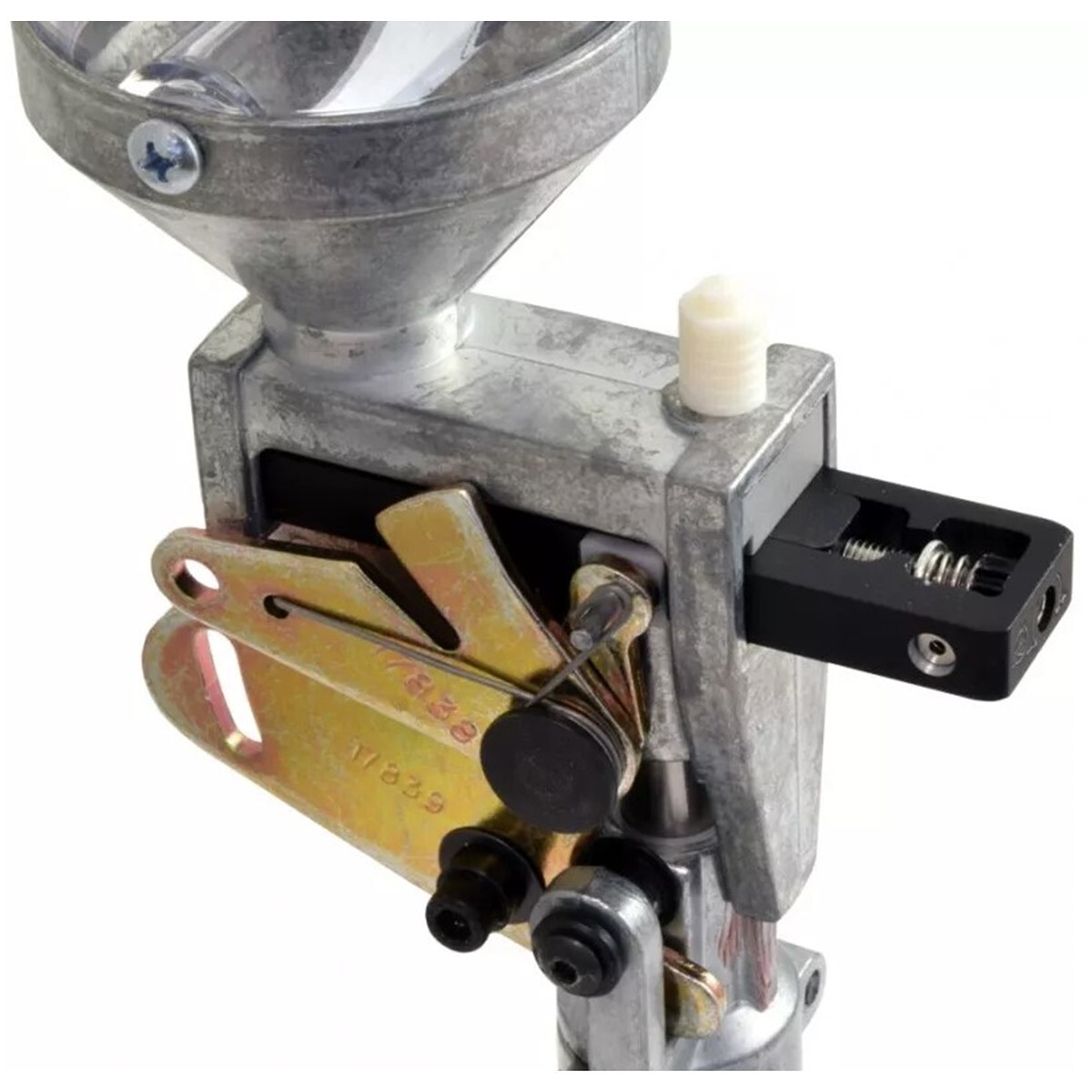

In order to resolve this problem, we designed an innovative extra-short powder bar that shortens the extension range towards station #4 by a full 30mm (1.15”), resolving the issue. When fully extended, our charge bar stops short of contacting a Mr.Bulletfeeder Dropper or Mini Mr.BF tube assembly.
The charge capacity of the Extra-Short bar is approximately 95% of the Original Dillon charge bar.
This design does require the use of a 2.5mm Allen key (not included) to adjust the powder charge, and the Click-Adjustable screw has 12 clicks per rotation for precise charge setting.
Made from black anodized 6061 Aluminium.
| SKU | 113867 |
| Brand | Double Alpha Academy |
| Shipping Weight | 0.0500kg |
| Shipping Width | 0.030m |
| Shipping Height | 0.020m |
| Shipping Length | 0.110m |
| Shipping Cubic | 0.000066000m3 |
The DAA Extra-Short Dillon Powder Bar was developed to meet a specific need, created with the introduction of the Dillon XL750 press: In the 750, the Dillon Powder Measure is angled such that the powder bar must extend directly over station #4 in the tool head, and it cannot be repositioned. This Is not an issue if you have a short die in that station. However, if you wish to run a powder check-in station #3, and a bullet dropper in station #4, as many do, this creates a serious problem. The original Dillon Powder Bar is too long, and it will extend and impact the bullet dropper in station #4, preventing the correct function.
In order to resolve this problem, we designed an innovative extra-short powder bar that shortens the extension range towards station #4 by a full 30mm (1.15”), resolving the issue. When fully extended, our charge bar stops short of contacting a Mr.Bulletfeeder Dropper or Mini Mr.BF tube assembly.
The charge capacity of the Extra-Short bar is approximately 95% of the Original Dillon charge bar.
This design does require the use of a 2.5mm Allen key (not included) to adjust the powder charge, and the Click-Adjustable screw has 12 clicks per rotation for precise charge setting.
Made from black anodized 6061 Aluminium.
