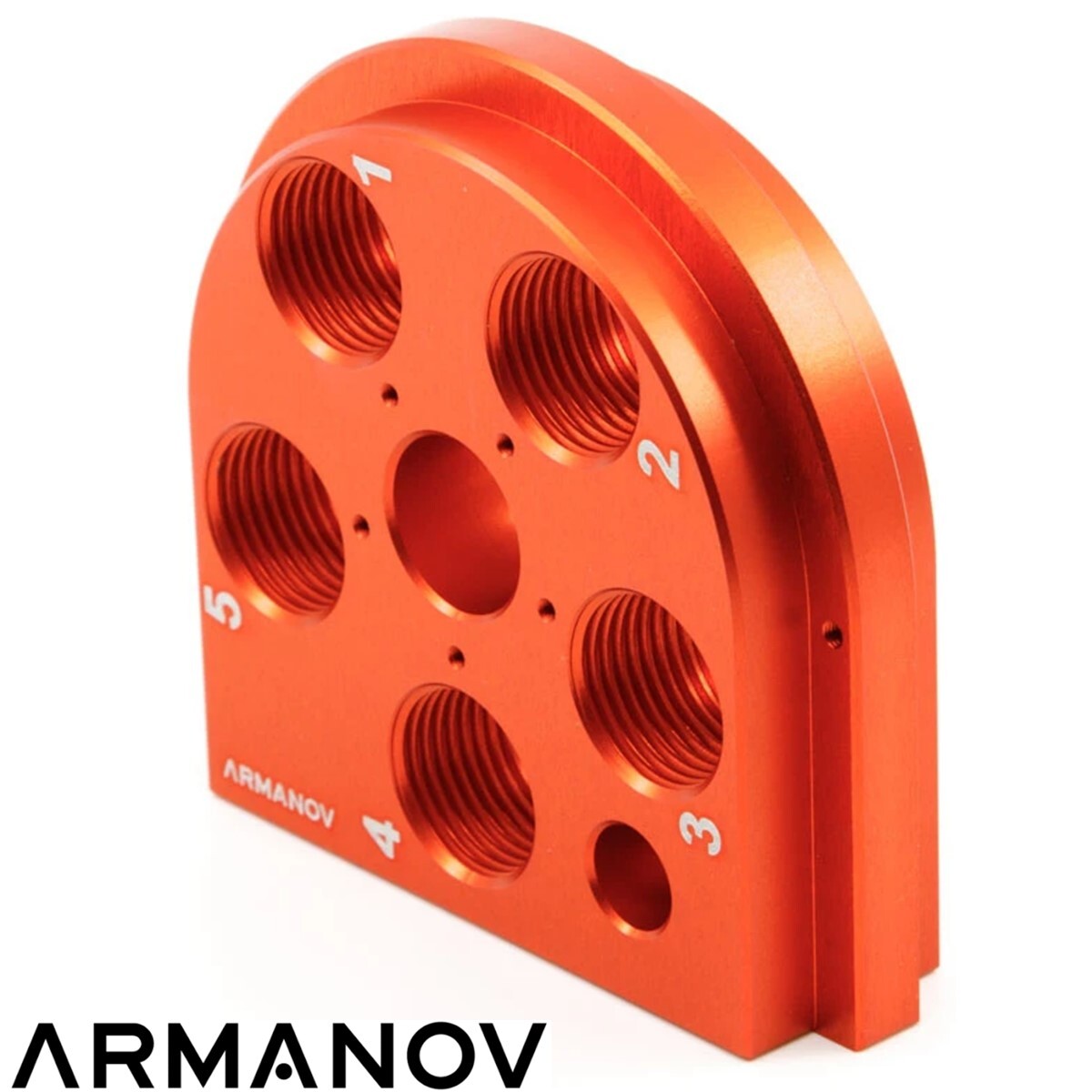

Armanov Toolhead Free-Float, Zero-Play for Dillon XL650/XL750
In Stock

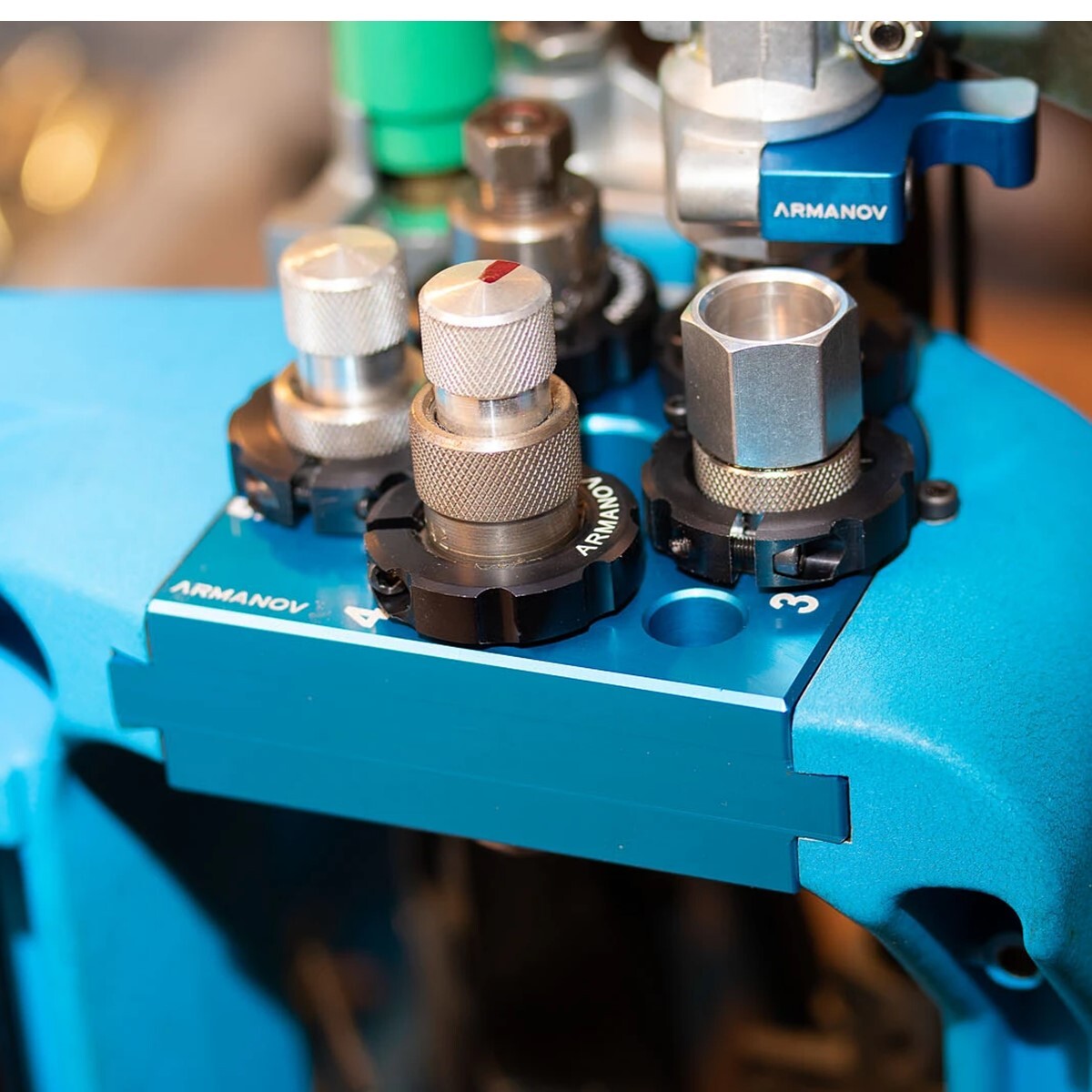

What does the Free-Float, Zero-Play Toolhead do?
This toolhead has lock rings that allow the sizer and seater dies to float. This floating action allows the dies to centre themselves exactly over each cartridge for the best possible alignment and more concentric ammunition.
What is Zero Play?
This toolhead does not use original toolhead pins supplied by Dillon. This toolhead is bolted with two M3 bolts and lifts toolhead into upmost position. When you cycle cases downwards toolhead does not move and cases go out in straight line. Best practice is to loosen M3 bolts a little bit and push index shell-plate with case in to dies and tighten M3 bolts in toolhead best position.
What is concentricity and how does it matter?
Concentricity refers to how straight the bullet is on top of the loaded round. A bullet that is straight will enter the rifling in the barrel that way. Bullets that enter the rifling slightly crooked do not shoot with their highest accuracy.
What’s wrong with using the OEM toolheads?
The Dillon presses are great machines made to high quality standards. However, the cast toolheads have limitations. How do we know if the toolhead flange is flat? Or how do we know that each threaded station in the toolhead is in perfect alignment with the shellplate? How do we know that the stations are equally spaced? All these areas compound for misalignments and lead to ammunition that isn’t quite as concentric as it could be. The toolhead is the final link between your dies and your press so it only makes sense that quality is extremely important. With over 100,00 EUR of dies, powder measure, and other accessories mounted in your toolhead, don’t you want to know it’s the best available!

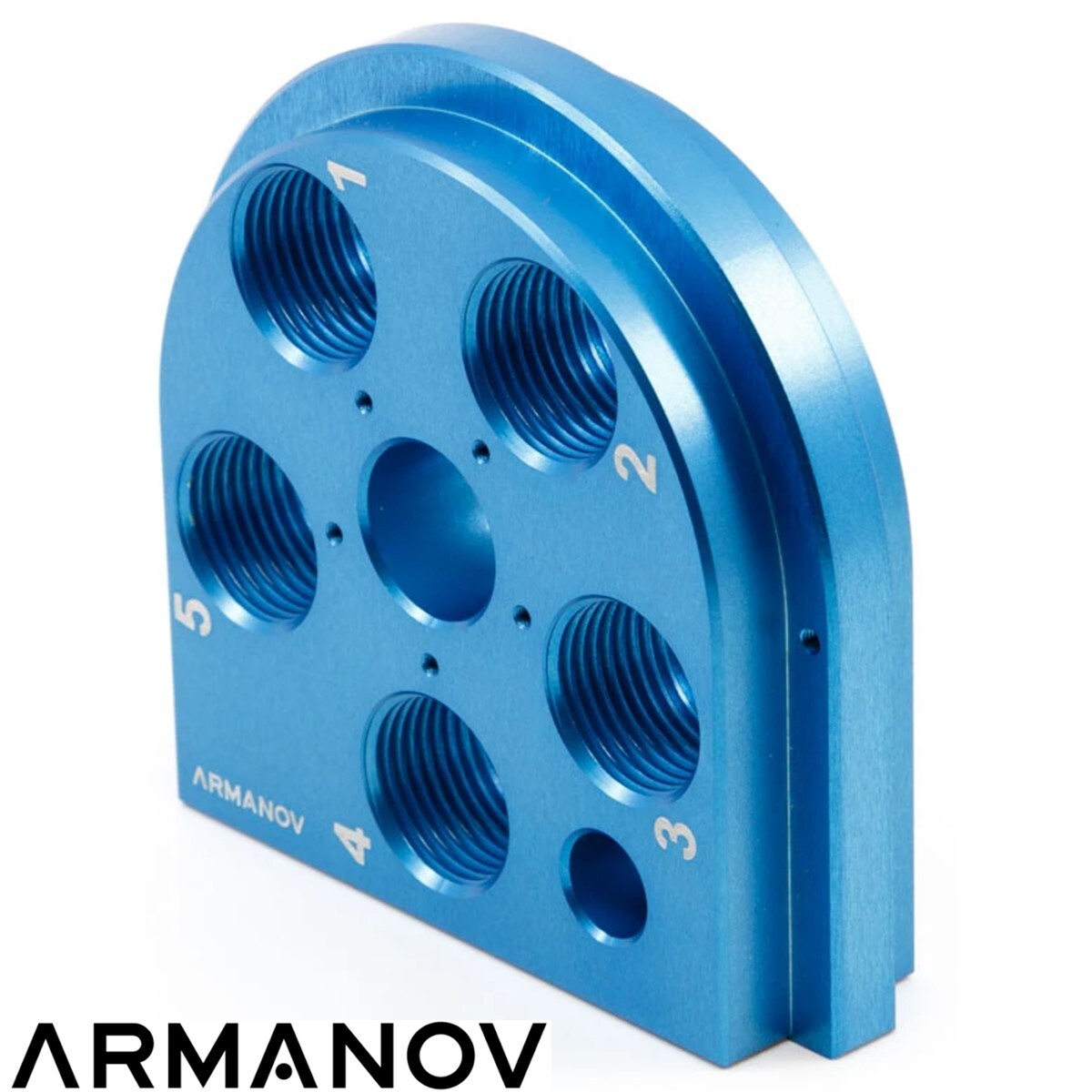

What is different about the new CNC Machined Toolhead?
These toolheads are made to the highest standards. They are CNC machined from 6082 aluminium, which is much stronger and has less flex than a cast toolhead. All critical dimensions are machined in a single operation, ensuring that all surfaces are true and aligned relative to each-other. The die holes are positioned with a very high degree of accuracy and the 7/8-14 threads are machined to tight tolerances for precise fit and alignment, yielding dies that are more precisely cantered in each hole and better aligned to the cartridge cases in the shellplate. The flange is also flatter than can be achieved with a cast toolhead.
Free-float rings are sold separately. Usually you need two free-float rings. One for resizing die and other for bullet seating die. However, you can add free-float ring to each station.
| SKU | 131767 |
| Brand | Armanov |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.040m |
| Shipping Height | 0.040m |
| Shipping Length | 0.160m |
| Shipping Cubic | 0.000256000m3 |
| Unit Of Measure | ea |
What does the Free-Float, Zero-Play Toolhead do?
This toolhead has lock rings that allow the sizer and seater dies to float. This floating action allows the dies to centre themselves exactly over each cartridge for the best possible alignment and more concentric ammunition.
What is Zero Play?
This toolhead does not use original toolhead pins supplied by Dillon. This toolhead is bolted with two M3 bolts and lifts toolhead into upmost position. When you cycle cases downwards toolhead does not move and cases go out in straight line. Best practice is to loosen M3 bolts a little bit and push index shell-plate with case in to dies and tighten M3 bolts in toolhead best position.
What is concentricity and how does it matter?
Concentricity refers to how straight the bullet is on top of the loaded round. A bullet that is straight will enter the rifling in the barrel that way. Bullets that enter the rifling slightly crooked do not shoot with their highest accuracy.
What’s wrong with using the OEM toolheads?
The Dillon presses are great machines made to high quality standards. However, the cast toolheads have limitations. How do we know if the toolhead flange is flat? Or how do we know that each threaded station in the toolhead is in perfect alignment with the shellplate? How do we know that the stations are equally spaced? All these areas compound for misalignments and lead to ammunition that isn’t quite as concentric as it could be. The toolhead is the final link between your dies and your press so it only makes sense that quality is extremely important. With over 100,00 EUR of dies, powder measure, and other accessories mounted in your toolhead, don’t you want to know it’s the best available!
What is different about the new CNC Machined Toolhead?
These toolheads are made to the highest standards. They are CNC machined from 6082 aluminium, which is much stronger and has less flex than a cast toolhead. All critical dimensions are machined in a single operation, ensuring that all surfaces are true and aligned relative to each-other. The die holes are positioned with a very high degree of accuracy and the 7/8-14 threads are machined to tight tolerances for precise fit and alignment, yielding dies that are more precisely cantered in each hole and better aligned to the cartridge cases in the shellplate. The flange is also flatter than can be achieved with a cast toolhead.
Free-float rings are sold separately. Usually you need two free-float rings. One for resizing die and other for bullet seating die. However, you can add free-float ring to each station.
