DPM Sig P226 - P220 Legion 4.4" Barrel
Recoil Reduction System - .357 Sig. 40 S&W, 9mm
Recoil Reduction System - .357 Sig. 40 S&W, 9mm
Out of Stock

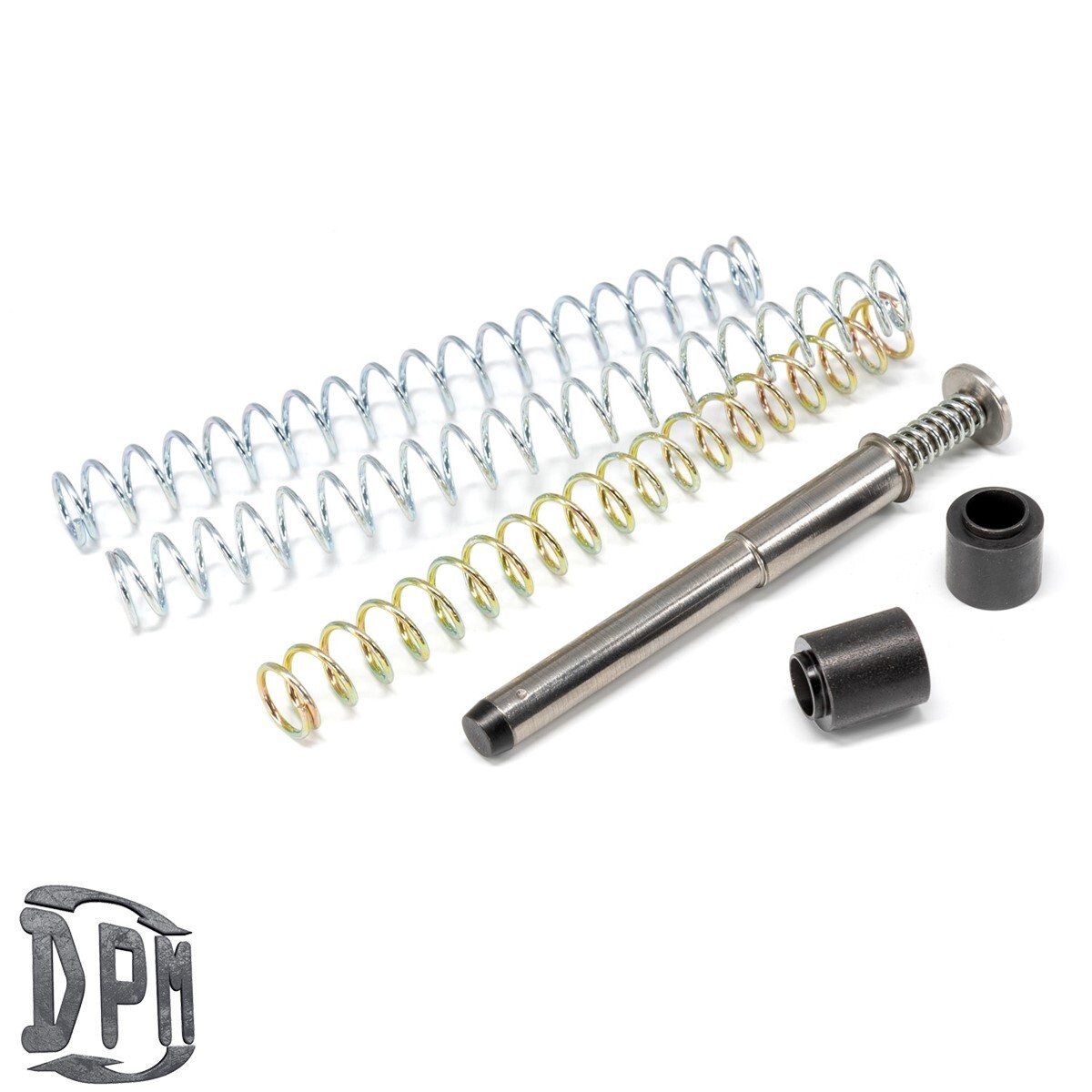

DPM Mechanical Recoil Reduction System for SIG P226 & P226 Legion 4.4″ Barrel
This system works due to the multi spring intricate rod (3 springs) and controls the functionality of the pistol. The third spring which is contained within the rod controls the movement of the slide so it never rams on the frame. The system includes 2 different spring plugs and 3 different external springs. The long spring plug is offering a heavier buffer effect and the short spring plug offers a lighter buffer effect (slide full open position).
The external springs are different in length so the user can fine tune the pistol on the opening and locking positions (slide on the battery) according his/hers personal standards.
Always install one of the spring plugs when the DPM Recoil Rod and springs are used.
Power Rates
Slide on the battery (idle position)
Short Spring: 3.7 kgs / 8.15lbs
Medium Spring: 3.95 kgs / 8.7 lbs
Long Spring: 4.2 kgs / 9.25 lbs
Slide full open position
Short Plug: Total force: 8.5 kgs / 18.7 lbs (approx.)
Long Plug: Total force: 11.5 kgs / 25.3 lbs (approx.)
Overall Advantages
DPM SKU: 1000014
| SKU | 152370 |
| Brand | DPM Systems Technologies Ltd |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.020m |
| Shipping Length | 0.190m |
| Shipping Cubic | 0.000456000m3 |
| Unit Of Measure | ea |
